| Brand Name : | SMATIPC |
| Model Number : | 2U6L-ADL |
| Certification : | CCC,CE,ROHS,ISO9001 |
| Price : | Negotiable |
| Payment Terms : | T/T,Paypal |
| Supply Ability : | 10000 Pcs/Month |
| Delivery Time : | 3-7Days |

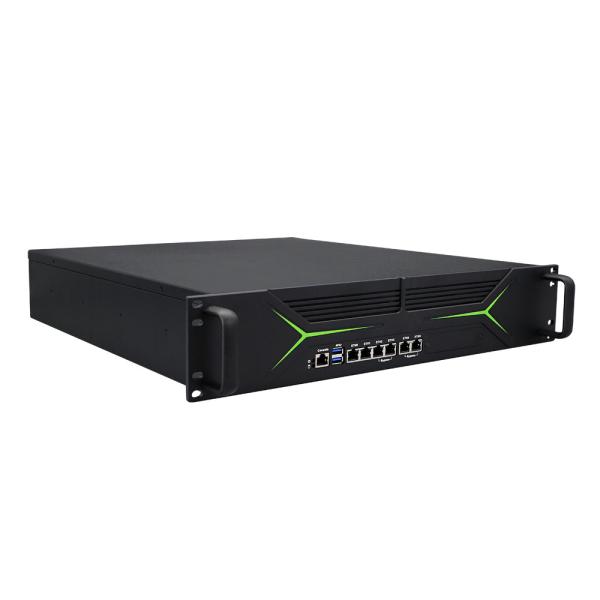

4 Optical Ports Or 4 Network Ports 2u Dual Ram Slot Rackmount Servers
12th Gen Intel Core i3 i5 i7 processor
Intel Core i3 12100
Intel Core i5 12400
Intel Core i7 12700
13th Gen Intel Core i3 i5 i7 processor
Intel Core i3 13100
Intel Core i5 13400
Intel Core i7 13700
1 redundant power supply AC 90~265V (47Hz-63Hz) input
Parameter | 2U6L-ADL | Storage | ||
| Processor | Intel Core I5-12400 6 Core 12 Threads, 2.5 Ghz, Turbo Frequency 4.4 Ghz, 7.5MB | M.2 | 1 M.2 (M-Key 2280 supports SATA) | |
| Chipset | Alder Lake-N | SATA | optional 1 X 3.5 inch HDD or 2 x 2.5 inch HDD | |
| Memory | 2 DDR4 3200 U-DIMM Memory , Max. 64GB | Expansion slots | ||
| Graphics Card | Mini PCIE | 1 PCIE X8 (optional 4 Optical Ports or 4 Network Ports) | ||
| Graphics Card | Intel UHD Graphics 730/770 | M.2 | 1 M.2 (M-Key 2280, supports SATA SSD) | |
| Display port | 1 x HD-MI | Size/weight | ||
| Dimension | 482 x 471 x 88.8mm | |||
| Ethernet | weight | 7.19 kg (barebone) | ||
| Internet port | 6 Intel i210-AT Gigabit Ethernet ports ( 2 sets of Bypass) | Installation | / | |
| I/O | Environmental | |||
| USB | 2 x USB 3.0 | Operating Temperature | 0℃ to 50℃, Surface air flow | |
| COM | 1x RS232/485 COM | Operating Humidity | 5% ～ 95% Non-condensing state | |
| Audio | / | Other Function | Watchdog (level 0-255) Diskless boot, Wake on LAN, Auto power on, Timing boot | |
| Power supply | ||||
| Power Input | 90 to 265V (47Hz-63Hz) AC input (optional redundant power supply) | Application | Firewall, VPN, network server, network security, router .,etc | |
What is the difference between 1U and 2U rack server?
Different sizes:
1U server: server height is 4.445 cm
2U server: server height is 4.445*2=8.89 cm
The number of hard disks and slots is different:
The maximum number of hard disks in a 1U server is 4, and the
maximum number of PCI slots is 2. The maximum number of hard disks
in a 2U server is 8, and the number of PCI slots can be up to 6.
The summary is as follows:
1U servers are small in size, use space first, cost-effective, and
low hosting costs
2U servers have large expansion space and better heat dissipation.
The system stability is better, and when used for hosting, its cost
is significantly higher than that of 1U servers.
|
|
