| Ask Lasest Price | |
| Model Number : | IEXP-322 |
| Certification : | CCC,CE,ROHS,ISO9001 |
| Price : | Negotiable |
| Payment Terms : | T/T,Paypal |
| Supply Ability : | 10000 Pcs/Month |
| Delivery Time : | 3-7Days |

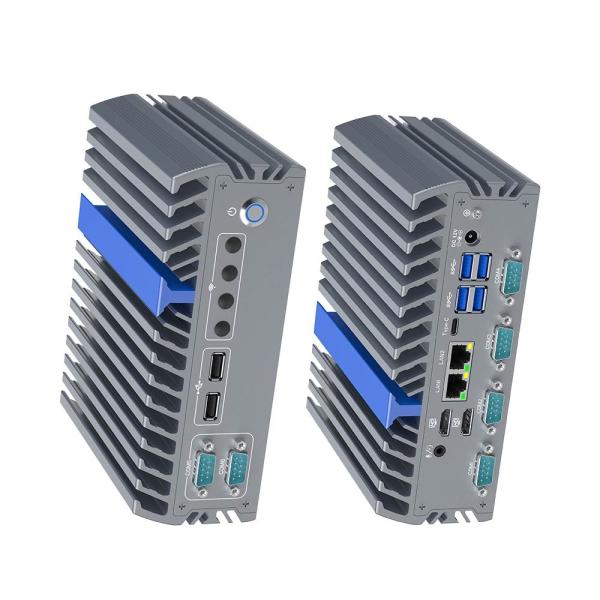

Small Industrial Pc 2 Intel I226-V Industrial Fanless Mini Pc For Pos System
The Small Industrial Pc boasts two intel 2.5gbe ethernet port,type is intel i226-v,besides Connection Ports providing support wifi ,Bluetooth,efficient connection and fast transmissionensuring maximum productivity and efficiency.This industrial computer system can handle any challenge you throw at it. Get yours today and experience the ultimate industrial computing experience.This Small Industrial PC is a fanless design, which means that it operates silently and without the risk of dust or other contaminants entering the system.
Parameter | Storage | |||
| Processor | Intel N100(quad core quad thread,Max Turbo 3.4 GHz) | M.2 | 1x M.2 2280 M-key slot(support SATA ) | |
| Chipset | Alder Lake-N | SATA | 1x 2.5 inch SSD slot | |
| Memory | 1x DDR5 4800 slot, Max 16 GB | Expansion slots | ||
| Graphics Card | Mini PCIE | 1 x Full length Mini PCIe slot(PCIE&USB2.0 ,4G/WIFI/BT optional), Nano-SIM slot | ||
| Graphics Card | Intel(R) UHD Graphics | M.2 | 1x M.2 2230 E-key slot( support WiFi / BT) | |
| Display port | 2 x HD-MI , 1x Type-C | Size/weight | ||
| Dimension | 7.3x 5.5 x 2.6 inch | |||
| Ethernet | weight | |||
| Internet port | 2 x Intel I226-V 2.5G Ethernet | Installation | VESA , Wall-mounted, Din-rail (optional) | |
| I/O | Environmental | |||
| USB | 4x USB 3.0, 2x USB 2.0 | Operating Temperature | -20℃ to 60℃, Surface air flow | |
| COM | 6 x RS232 COM (standard) | Operating Humidity | 5% ～ 95% Non-condensing state | |
| Audio | 1 x Line-out/Mic-in, two in one audio | Other Function | Power on when there is electricity, network wake up timed startup, PXE startup ,TPM2.0 | |
| Power supply | ||||
| Power Input | 1 x DC(5.5 x 2.5mm), support 12V input | Application | Industrial automation, medical, transportation, logistics, warehousing, e-education.,etc | |
The IEXP-322 Small Industrial Pc can be used in industrial automation and control systems, a factory, warehouse.a high-definition HD-MI resolution of up to 3840 x 2160 @60Hz, providing crystal-clear images for your industrial automation PC needs
|
|
