| Brand Name : | SMATIPC |
| Model Number : | IEXP-504 |
| Certification : | CCC,CE,ROHS,ISO9001 |
| Price : | Negotiable |
| Payment Terms : | T/T,Paypal |
| Supply Ability : | 10000 Pcs/Month |
| Delivery Time : | 3-7Days |

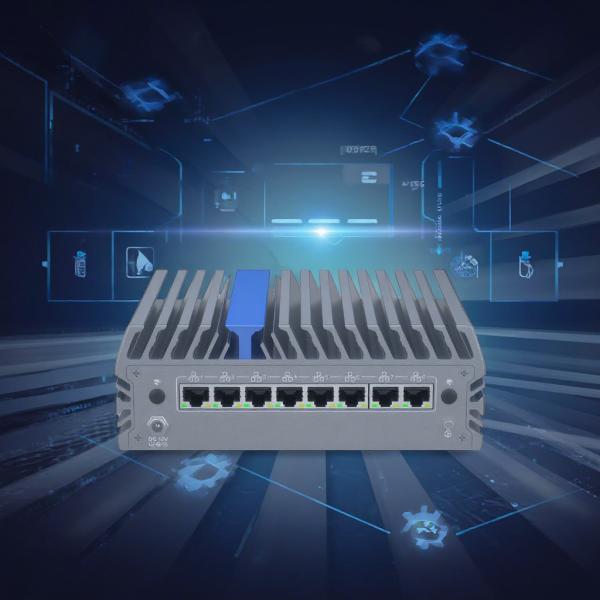

Fanless Desktop Firewall Pc Ultra 5 125u 12 Core 8 Lans Firewall Appliance
the 8 LAN Fanless Desktop Firewall Pc is equipped with Intel 14th Gen Core Ultra series Processor,this is Ultra 5 125U 12 core 14 threads, max Turbo 4.3 GHz. adopt all-aluminum alloy structure, fanless cooling design, Support 4K high-definition triple display, 1 HD-MI,1 DP,1 Type-C , dual DDR5 5600 slot, Max 64GB, overrall ,a powerful and reliable network security device that provides comprehensive protection against cyber threats. With its six LAN ports, four USB3.2 ports, i226 n chipset,
| Parameter | IEXP-504 | Storage | ||
| Processor | Intel Core Ultra 5 125U | M.2 | 1 x M.2 2280 M-key slot (NVME (PCIE X4) | |
| Intel Core Ultra 7 155U | SATA | 1 x 3.0 inch SSD slot | ||
| Chipset | Meteor Lake -U | Expansion Slots | ||
| Memory | 2 x DDR5 5600MHz slot,Max 64GB | M.2 | 1 x M.2 2280 M-key slot(NVME) | |
| Graphics Card | 1 x M.2 2230 E-key slot(WIFI,BT) | |||
| Graphics Card | Intel Graphics | 1 x M.2 2242 B-key slot(compatible with 3052B-key)(USB3.0 protocol,support 4G/5G), external SIM slot | ||
| Display | 1 x HD-MI | |||
| 1x DP | Internal port | 2 x USB2.0, 4 pin GPIO optional(Standard shipments do not come with theses interfaces) | ||
| 1 x Type-C | ||||
| Ethernet | 8 x Intel 2.5Gbe Ethernet | Dimension | 180 x 140 x 66 mm | |
| I/O | Weight | 1.65 kg | ||
| USB | 4 x USB3.2 | Installation | VESA, Wall-mounted, Din-rail (optional) | |
| COM | 1 x RJ45(support Console) | Environmental | ||
| Switch buttons | 1 x power switch,1 x Reset button | Operating Temperature | -20℃ to +50℃, Surface air flow | |
| Power supply | 1 x DC(5.5 x2.5mm), support 12V input | Operating Humidity | 5% to 95% Non-condensing state | |
| Other Function | Power On, Wake on LAN | Application | Firewall,Vpn,Network Server | |
| Timed start up,PXE startup(0～255level),TPM2.0 | Network Security,Router., Etc | |||
The SMATIPC IEXP-504 Fanless Desktop Firewall Pc the firewall is capable of handling heavy traffic and can protect your network from various types of attacks. It is easy to configure and manage
|
|
